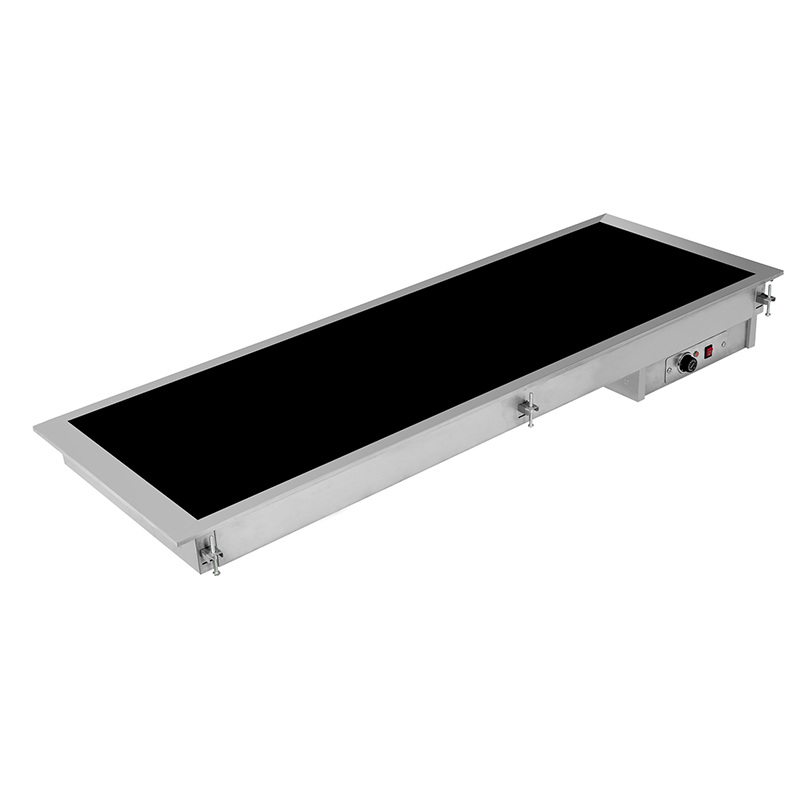

Glass ceramic top plates

Flat hot plate made of ceramic glass, specially designed to hold, display and distribute hot food presented on plates or shallow GN 1/1 pans during service time.
Specially manufactured in high-quality stainless steel for intensive professional applications
4 mm thickness, high-resistant, glass ceramic plate completely flat.
Heating system by hidden silicon resistors attached to the bottom of the plate. Silicon resistors allow achieving the working temperature very fast and uniformly across the surface. This assures that the temperature is transmitted efficiently to every single GN pan on the plate.
Easy to use analog thermostat for an easy and quick set temperature.
Prepared for optional installation of a foodshield with light and heat that is easily fixed to the structure by means of threaded plates.
Special clamps in the sides that ensure a uniform fit and grip over the entire surface.
Operating temperature for hot glass ceramic top plate: from +40ºC to +120ºC.
Operating voltage and frequency: 230V 1N 50/60Hz

Model	Reference	External dimensions (mm)	Cut-out dimensions (mm)	Capacity GN	Power (W)
DCT-211	19069683	790 x 610 x 210	765 x 585	2 GN 1/1	900
DCT-311	19069684	1115 x 610 x 210	1090 x 585	3 GN 1/1	1350
DCT-411	19069685	1440 x 610 x 210	1415 x 585	4 GN 1/1	1800
DCT-511	19069686	1765 x 610 x 210	1740 x 585	5 GN 1/1	2250
