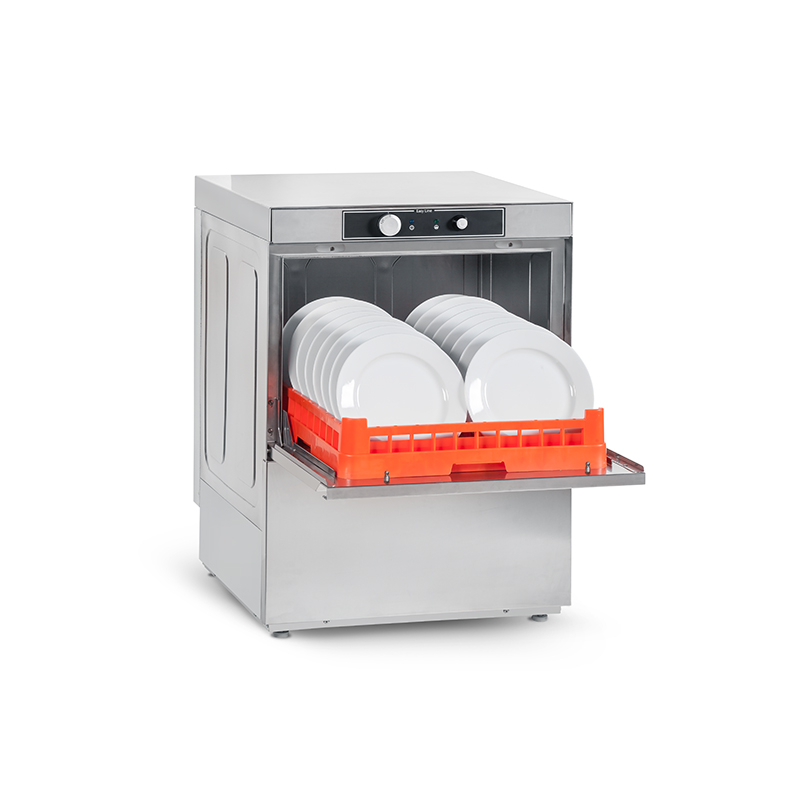

FRONT LOADING DISHWASHERS - 500

Electromechanical control panel.
1 washing cycle of 120".
Tank capacity: 25 l. / Heating power: 2.8 kw.
Boiler capacity: 7 l. / Heating power: 2.8 kw.
Wash pump power: 0.6 kw.
Rinsing consumption: 2.7 l/rinse.
Upper and lower washing and rinsing arms.
Stainless-steel washing arms.
Built-in rinse aid dispenser.
Anti backflow valve fitted.
Safety thermostat in washing tank and boiler.
Temperatures adjusted: Wash 60 ºC and rinse 85 ºC.
Supply voltage: 230V / 1N 50 Hz.
Accessories supplied: 1 basket CP-16/18, 1 basket CT-10 and 1 basket for cutlery CU-7.
OPTIONAL MODELS WITH
- Built in detergent aid dispenser.
- Built in draining pump.
- Stainless-steel filter trays.
- Stainless-steel rinsing arms.
- UK version: With 2.2 kW boiler heating power, 2 kW tank heating power and UK plug (13A).
- 60 Hz version.

Model	Reference	baskets / hour	Door clearance (mm)	"Dimensions (mm)"	Detergent dispenser	Drain pump	Cold rinsing	"Power (kW)"	Votalge (V)
GE-500	19047202	30	320	600x600x820	No	No	No	3.4	230 V/ 1N 50 Hz
GE-500 DD	19047938	30	320	600 x 605 x 830	Yes	No	No	No	3.4
GE-500 B	19059577	30	320	600 x 600 x 820	No	Yes	No	3.4	230 V/ 1N 50 Hz
GE-500 B DD	19055860	30	320	600 x 605 x 830	Yes	Yes	No	3.4	230 V/ 1N 50 Hz
