BD-55

Accessories

Basket dispensers

Click on the image to enlarge

×

Technical datasheet
Reference19069722
External dimensions (mm)600 x 640 x 710
Cut-out dimensions (mm)535 x 610

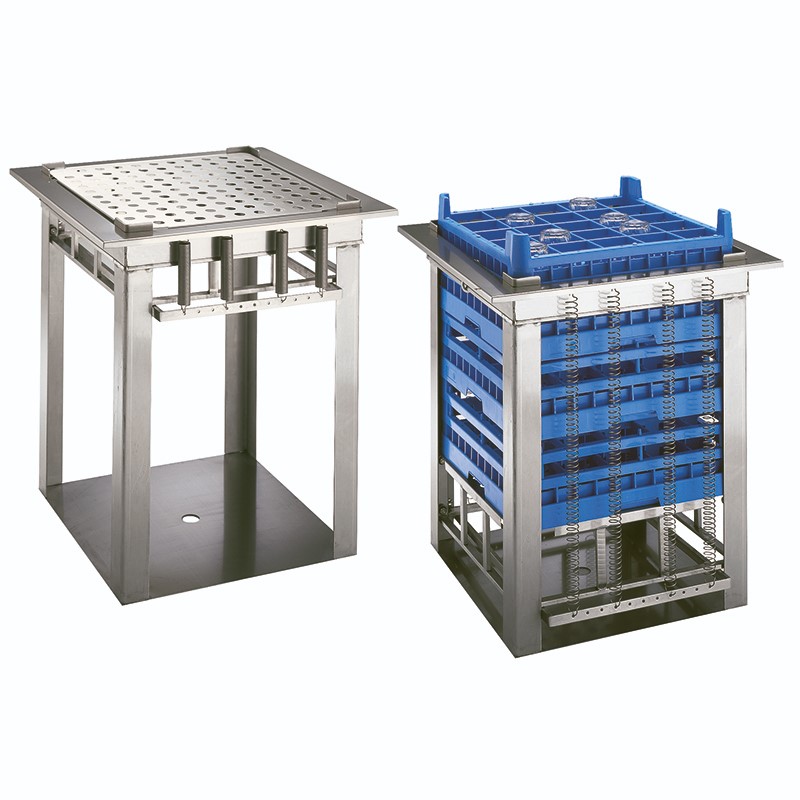

      • Specially designed for storing standard size 500 x 500 mm crockery baskets.
      • Special system with steel springs, keeping the baskets at a constant level for easy service.
      • Elasticity can be adjusted according to the weight of the baskets, turning ON/OFF the springs.
      • Easy to place and remove.
      • Maximum load: 120 kg.
      • Capacity: 5/6 baskets with a depth of 110 mm.
      • Specially manufactured in high-quality stainless steel.
TypeNeutral
Net High (mm)720
Net Depth (mm)600
Net Width (mm)640
Gross weight / packaged (kg)24
Gross height / packaged (mm)880
Gross width / packaged (mm)650
Gross length / packaged (mm)800
Net weight (kg)19

Documentation

CE Certification
