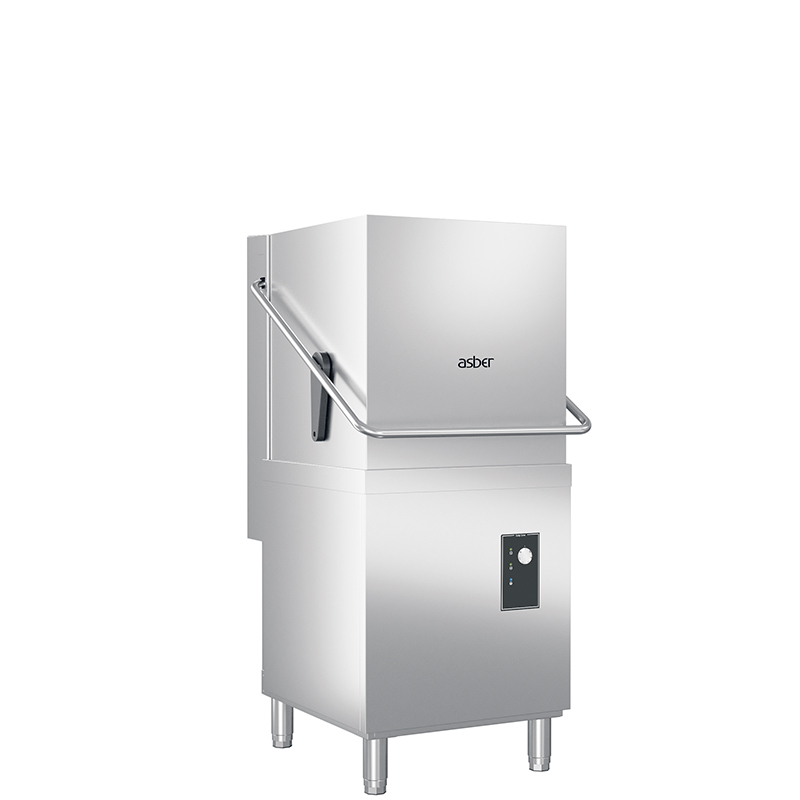

Pass-Through dishwashers GEX-H510



  • Electromechanical control panel.
  • 3 washing cycles: 55”/75”/120”.
  • Continuous cycle up to the manual stop.
  • Tank capacity: 33 l./Heating power: 4.5 kW.
  • Boiler capacity: 7 l./Heating power: 9.0 kW.
  • Wash pump power: 0.75 kW.
  • Rinsing consumption: 2.6 l/rinse.
  • Upper and lower washing and rinsing arms.
  • Stainless steel washing arms.
  • Built-in rinse-aid dispenser.
  • Anti backflow valve fitted.
  • Tank filter in composite material.
  • Single skin hood.
  • Safety thermostat in washing tank and boiler.
  • Temperature adjustement: wash 60 ºC and rinse 85 ºC.
  • Multi-Voltage: 400 V/ 3N, 230 V/ 3~.
  • Adjustable boiler heating power (Multi-Power).
  • Accessories supplied: 1 basket CP-16/18, 1 basket CT-10 and 1 basket for cutlery CU-7.
  • OPTIONAL MODELS WITH
  • Double skin hood.
  • Built-in drain pump.
  • Built-in electric rinse-aid dispenser.
  • Built-in detergent dispenser.
  • Wash tank stainless steel filter.
  • Stainless steel rinsing arms.
  • 60 Hz version.
ModelReferenceBaskets/hourDoor clearance (mm)Dimensions (mm)Detergent dispenserDrain pumpPower (kW)Voltage (V)
GEX-H5101910467665440630 x 770 x 1485NoNo14.25400 V/ 3N 50 Hz
GEX-H510 DD1910467765440630 x 770 x 1485YesNo14.25400 V/ 3N 50 Hz
GEX-H510 B1910467865440630 x 770 x 1485NoYes14.25400 V/ 3N 50 Hz
GEX-H510 B DD1910467965440630 x 770 x 1485YesYes14.25400 V/ 3N 50 Hz

Technical datasheet
